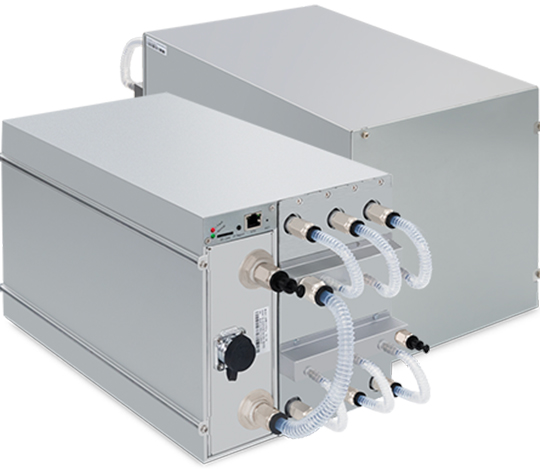

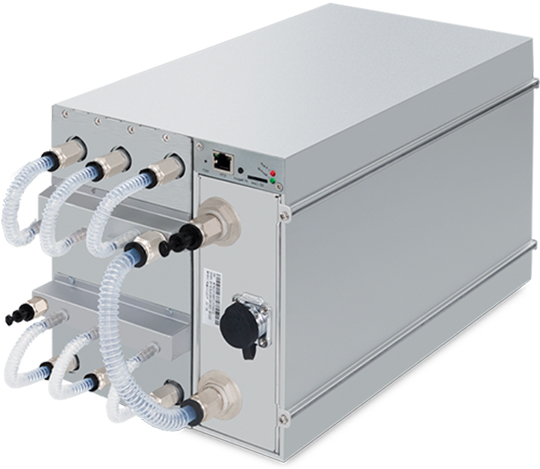

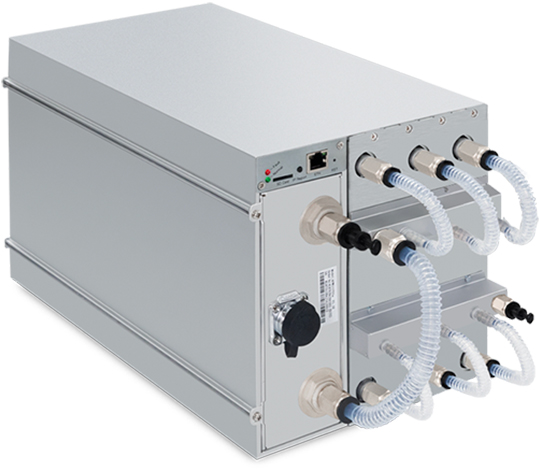

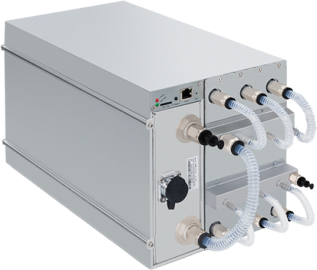

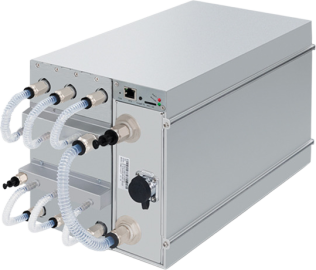

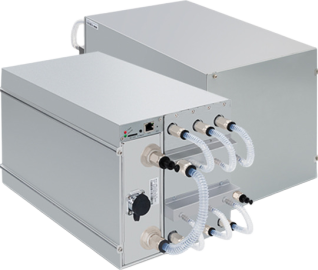

SPOT Bitcoin Miner S19 XP Hyd.
Bitmain Antminer S19 XP Hyd. – 257 TH/s hydro-cooled SHA-256 Bitcoin miner, 5346W, 20.8 J/TH. Proven liquid-cooled ASIC for professional BTC farms.
Performance Curves

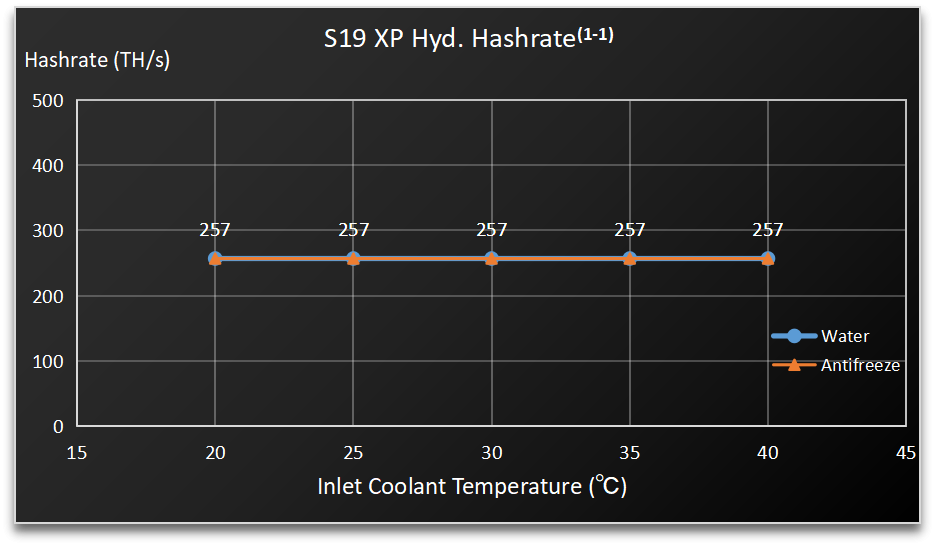

1. Hashrate vs. Inlet Coolant Temperature

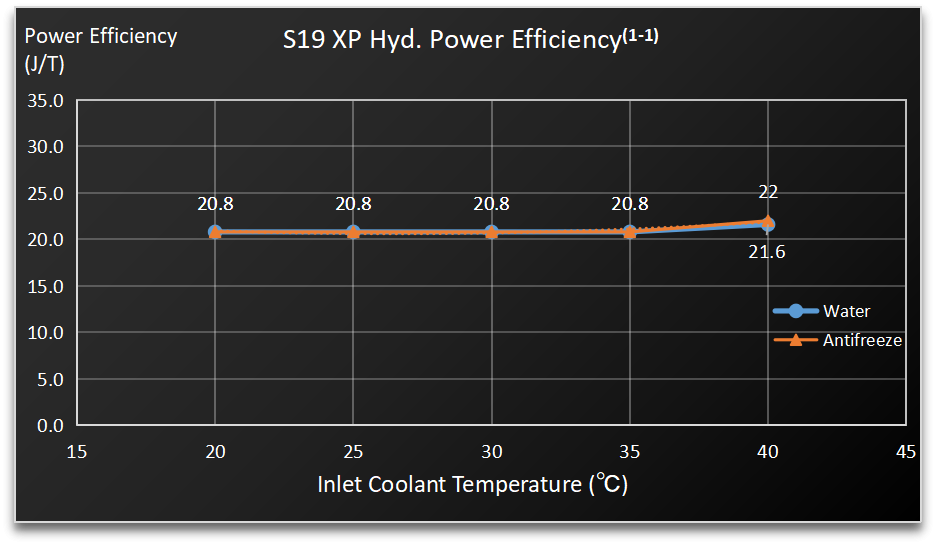

2. Power Efficiency vs. Inlet Coolant Temperature
(1-1) The hashrate value, and power efficiency on wall are all typical values. The actual hashrate value fluctuates by ±3%, and the actual power efficiency on wall fluctuate by ±5%.
Specifications
| Product Glance | Value |
|---|---|
| Model | S19 XP Hyd. |
| Crypto algorithm/coins | SHA256 | BTC/BCH/BSV |
| Typical hashrate, TH/s(2-1) | 257 |
| Power on wall @35°C(2-2), Watt(2-1) | 5346 |
| Power efficiency on wall @35°C(2-2), J/T(2-1) | 20.8 |
| Detailed Characteristics | Value |
|---|---|
| Power supply | |
| Phase | 3 |
| Input voltage, Volt(3-1) | 380~415 |
| Input frequency range, Hz | 50~60 |
| Input max current, Amp | 12 |
| Hardware Configuration | |
| Network connection mode | RJ45 Ethernet 10/100M |
| Server size (length*width*height, w/o package), mm | 410*170*209 |
| Server size (length*width*height, with package), mm | 570*316*430 |
| Net weight, kg | 12.8 |
| Gross weight, kg | 14.1 |
| Environment Requirements | |
| Inlet coolant temperature, ℃ | 20~40 |
| Coolant flow, L/min | 8.0~10.0 |
| Coolant pressure, bar | ≤3.5 |
| Working coolant(3-2) | Antifreeze/ Pure water/Deionized water |
| Coolant pH value | Antifreeze: 7.0~9.0 Pure water: 6.5~7.5 Deionized wate: 8.5~9.5 |
| Diameter of coolant pipe connector, mm | OD10 |
| Storage temperature, °C | -20~70 |
| Operation humidity(non-condensing), RH | 10%~90% |
Notes:
(2-1) The hashrate value, power on wall, and power efficiency on wall are all typical values. The actual hashrate value fluctuates by ±3%, and the actual Power on wall and Power efficiency on wall fluctuate by ±5%.
(2-2) Inlet water temperature.
(3-1) Caution: Wrong input voltage may cause server damaged.
(3-2) For detailed working coolant use and maintenance instructions, please refer to "ANTSPACE HK3 Water Cooling Container & Dry-Wet Tower Product Manual", Chapter 9, Article 3, Point 6, "Maintenance of Coolant"!
Purchasing Guidelines
1. Shipments will be scheduled on a first-paid-first-ship basis for orders on which BITMAIN has received full payment.
2. You are responsible for any customs delays or returned shipments due to a lack of proper documentation. It's highly recommended to be aware of local customs clearance policies and prepare all customs documentation ahead of time to avoid delays or unexpected costs.
3. Click here to download Certificates of Conformity and find additional information on customs clearance for BITMAIN products.
Warranty
1. Kindly note that customer service for the product shall not be available if the miner is operated without the water-cooling container due to operational issues.
2. A 365-day warranty period is provided starting from the shipping date. BITMAIN will cover shipping costs when shipping a replacement unit within the warranty period.
3. The warranty only applies to the original purchaser who purchased the machine directly from BITMAIN. Once the miner is resold, warranty coverage becomes the responsibility of the re-seller.
4. If the user fails to use the product per the given instructions, specifications, and conditions provided or changes the function settings of the unit without BITMAIN's prior consent, BITMAIN will not be liable for any damage arising therefrom.
5. Click here for a complete list of the Terms & Conditions that apply to all orders placed on https://shop.bitmain.com.
