Specifications
| Product Glance | Value |
|---|---|

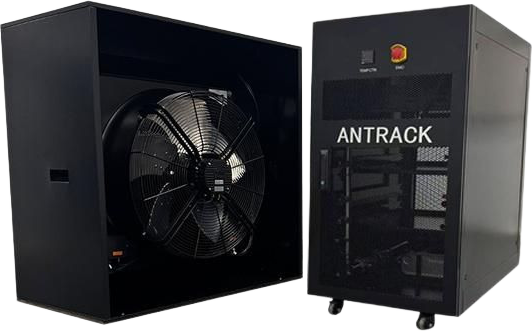

| Model | ANTRACK |
| Version | AR21 |
| Capacity | 4 units ANTMINER (Hydro) or 2 units ANTMINER (U2 Hydro) or 2 units ANTMINER (U3 Hydro) |
| Maximum load,kW | 24 |
| Total load,kW | 26 |
| Detailed Characteristics | Value |
|---|---|
| Part 1: Mining Cabinet | |
| Hardware Configuration | |
| Size (Length*Width*Height), mm (without package) | 1260*600*1185 |
| Size (Length*Width*Height), mm (with package) | 1320*760*1320 |
| Net weight, kg (without package) | 138 |
| Gross weight, kg (with package) | 195 |
| Network connection mode | RJ45 Ethernet 10/100M |
| Power Supply | |
| Power supply AC Input voltage, Volt(1-1) | 380~415V AC |
| Power supply AC Input Frequency Range, Hz | 50~60 |
| Power supply AC Input current, Amp(1-2) | 63 |
| Water pump | |
| Rated power, W | 450 |
| Noise, dBA@1m | 60 |
| Lift, m | 19 |
| Size (Length*Width* Height), mm | 360*210*268 |
| Part 2: External Cooler(1-3) | |
| Hardware Configuration | |
| Size (Length*Width*Height), mm (without package) | 1197*650*1177 |
| Size (Length*Width*Height), mm (with package) | 1320*760*1320 |
| Net weight, kg (without package) | 112 |
| Gross weight, kg (with package) | 165 |
| Power supply | |
| Power supply AC input voltage, Volt(1-1) | 380~415V AC |
| Power supply AC input frequency range, Hz | 50~60 |
| Maximum power supply AC input current, Amp(1-2) | 63 |
| Fan | |
| Rated power, W | 750 |
| Noise, dBA@1m | 60 |
| Size (Length*Height*Thickness), mm | 850*850*305 |
| Environment Requirements | |
| Ambient temperature, °C | -20~45 |
| Water flow, L/min | 32.0~40.0 |
| Water pressure, bar | ≤3.5 |
| Working fluid(1-4) | Organic Antifreeze (10%) |
| Installation distance, m(1-5) | 5 |
| Liquid PH | 7.8~8.5 |
| Storage temperature, °C | -20~70 |
| Operation humidity(non-condensing), RH | 10~90% |

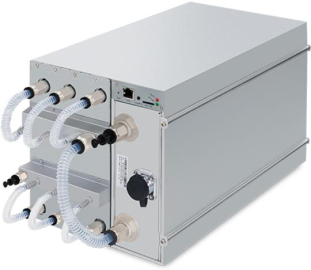

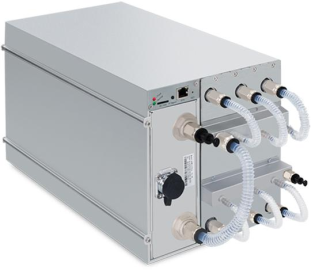

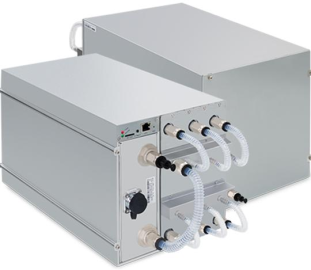

| Product Glance | |
| Model | S19 XP Hyd. |
| Version | 10 |
| Crypto algorithm/coins | SHA256 | BTC/BCH/BSV |
| Typical hashrate, TH/s(1-1) | 257 |
| Power on wall @35°C(1-2), Watt(1-1) | 5,346 |
| Power efficiency on wall @35°C(1-2), J/TH(1-1) | 20.8 |
| Detailed Characteristics | |
| Power Supply | |
| Phase | 3 |
| Input voltage, Volt(2-1) | 380~415 |
| Input Frequency Range, Hz | 50~60 |
| Input max current, Amp | 12 |
| Hardware Configuration | |
| Networking connection mode | RJ45 Ethernet 10/100M |
| Server Size (Length*Width*Height, w/o package), mm | 410*170*209 |
| Server Size (Length*Width*Height, with package), mm | 570*316*430 |
| Net weight, kg(2-2) | 12.8 |
| Gross weight, kg | 14.1 |
| Environment Requirements | |
| Inlet coolant temperature,°C | 20~40 |
| Coolant flow, L/min | 8.0~10.0 |
| Coolant pressure, bar | ≤3.5 |
| Working coolant(2-2) | Antifreeze/ Pure water/Deionized water |
| Coolant pH value | Antifreeze: 7.0~9.0 Prue water: 6.5~7.5 Deionized water：8.5~9.5 |
| Diameter of coolant pipe connector, mm | OD10 |
| Storage temperature,°C | -20~70 |
| Operation humidity(non-condensing) , RH | 10~90% |
NOTE:
(1-1) The hashrate value, power on wall, and power efficiency on wall are all typical values.The actual hashrate value fluctuates by ± 3%, and the actual power on wall and powerefficiency on wall fluctuate by ±5%.
(1-2) Inlet coolant temperature.
(2-1) Caution: Wrong input voltage may cause server damaged.
(2-2) For detailed working coolant use and maintenance instructions, please refer to "ANTSPACE HW7 Liquid cooling container & Dry-cooling Tower product manual", Chapter 9, Article 3, Point 6, "Coolant Maintenance"!
PS: Please note that the Hydro-cooling miners are shipped without power cables. There are power cables inside the ANTRACK.
