FUTURES APW121417b_14V-17V EMC
| Function |
KS3
Air-cooling Miner
|
| Specifications |
|
| Price |
173 $/T
173 $/Unit
|
| Shipping Date |
Shipping out within 15 days after full payment.
|
| Payment Method |
KS3
|
Specifications
| APW12 OUT1 | DC Voltage 14V-17V |
| Rated Current(220 V input) | 182A (maximum 212A) |
| Power-off retention time | >10mS |
| OUT2 | DC Voltage 12.3V |
| Rated Current(220 V input) | 18A |
| Voltage Accuracy | 12.2V---12.4V |
| Power-off retention time | >10mS |
| Input | Voltage Range 200-240V AC |
| Frequency Range | 47-63Hz |
| Power Factor | >0.99(full load) |
| Protection | Input undervoltage protection value 80-89V AC |
| Output Short Circuit | Yes |
| Over-temperature protection | Yes |
| Output overcurrent protection value | 260A-340A |
| （protection value varies under different voltage） Environment | Operating Temperature -20-45℃ |
| Operating Humidity | 20%-90%RH（non-condensing） |
| Altitude | < 2000m |
| Structure | Dimensions 254.6mm*251.6mm*63mm |
| Net Weight | 3.6KG |
| Cooling method | Forced air cooling |
| Noise | 45dBA |
Purchasing Guidelines
NOTES
1. One account can purchase a maximum of 200 units.
2. The shipping costs, cutsoms charges, and taxes(if any) are not included in the retail price shown above.
3. After an order has been submitted, a request to cancel the order, refund any part of the ordered amount or change the ordered item(s) to different item(s) or different batch(es) will not be entertained by BITMAIN.

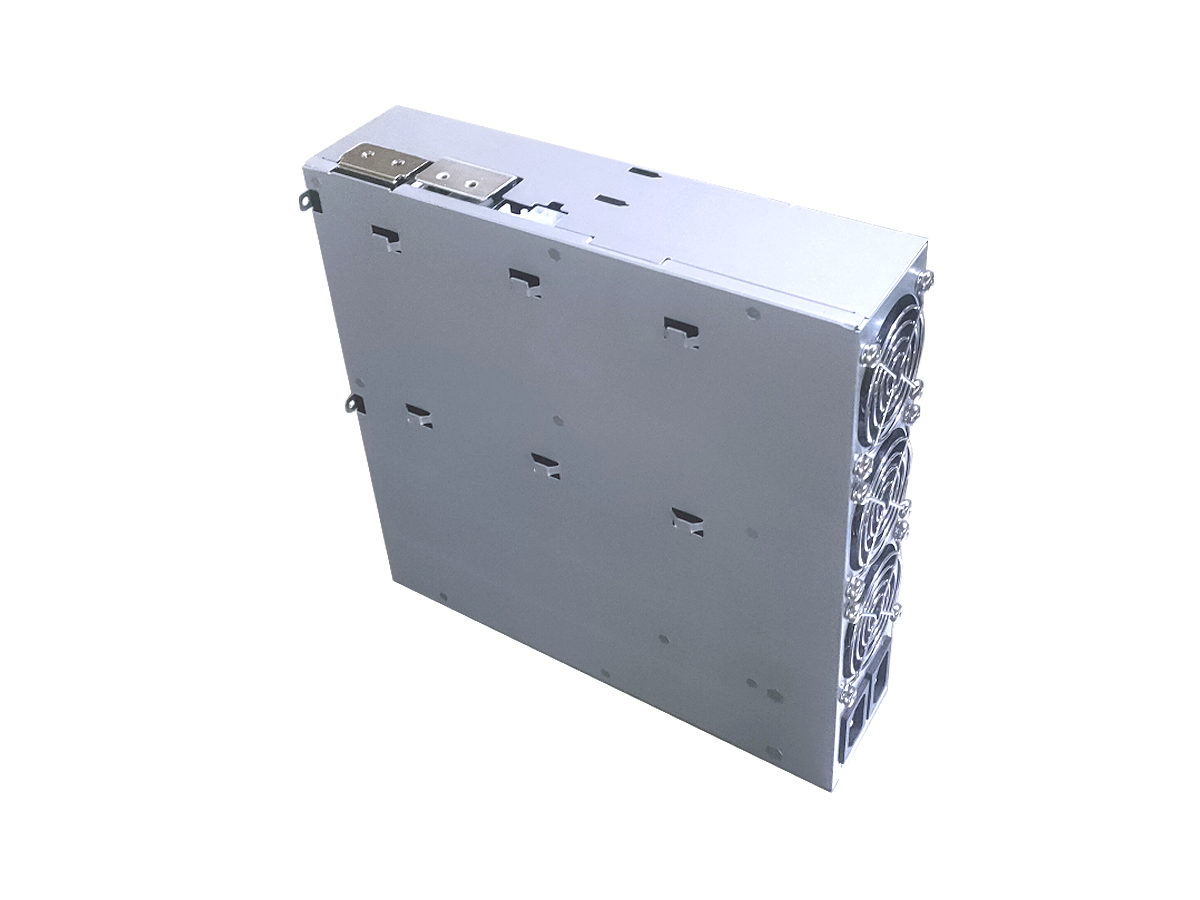

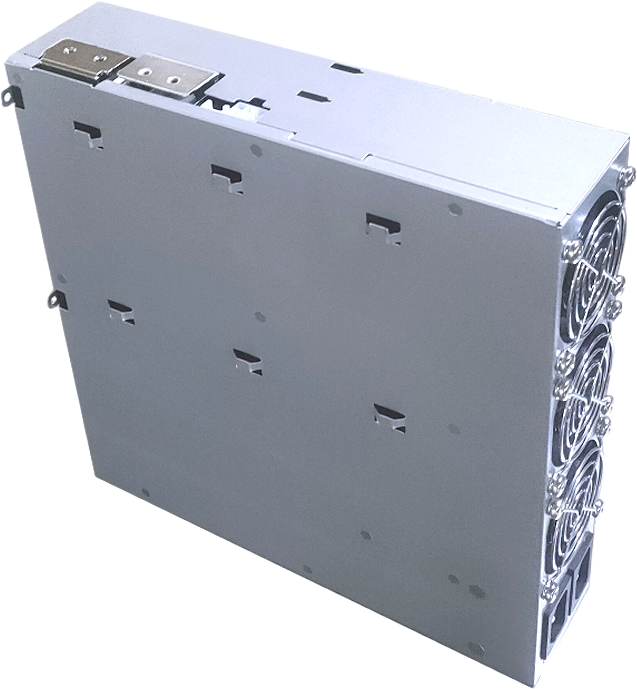

4. The pictures shown are for reference only; the final shipment version shall prevail.
SHIPPING DETAILS
1. The products are made in China. If shipping to the U.S., customers will need to pay tariff.
2. Shipments will be scheduled on a first-paid-first-ship basis for orders on which BITMAIN has received full payment.
3. You are responsible for any customs delays or returned shipments due to a lack of proper documentation. It's highly recommended to be aware of local customs clearance policies and to prepare all customs documentation ahead of time to avoid any customs clearance delays or unexpected costs.
