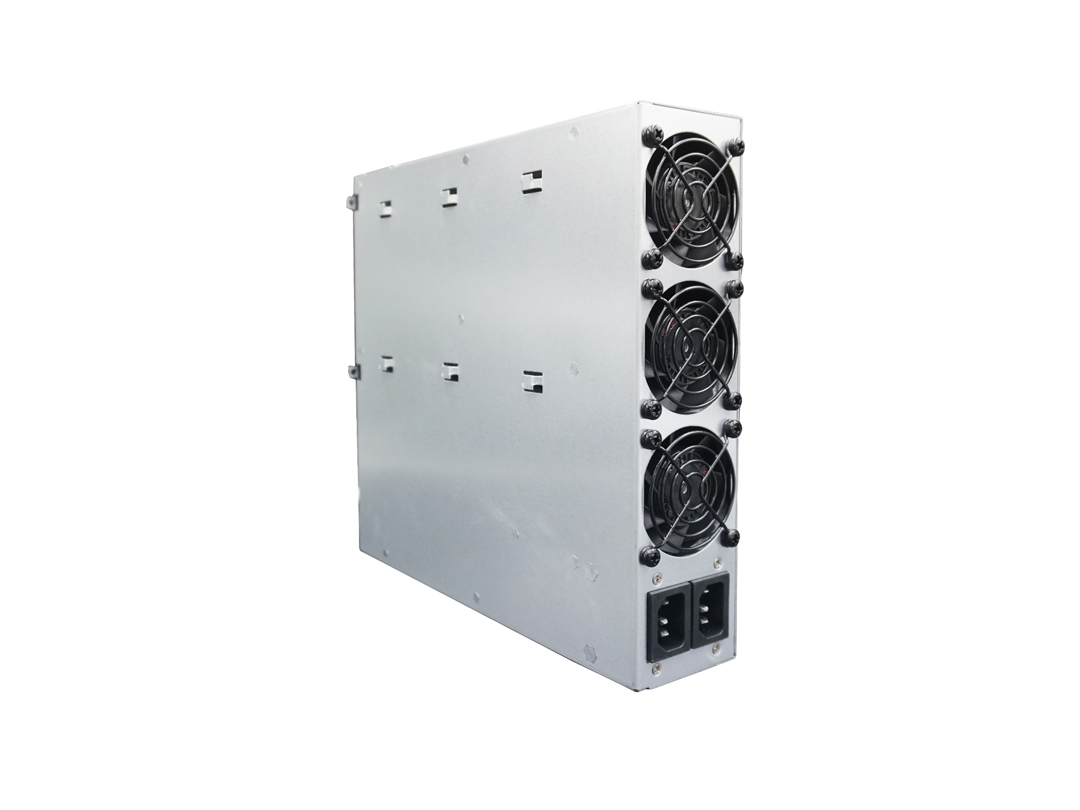

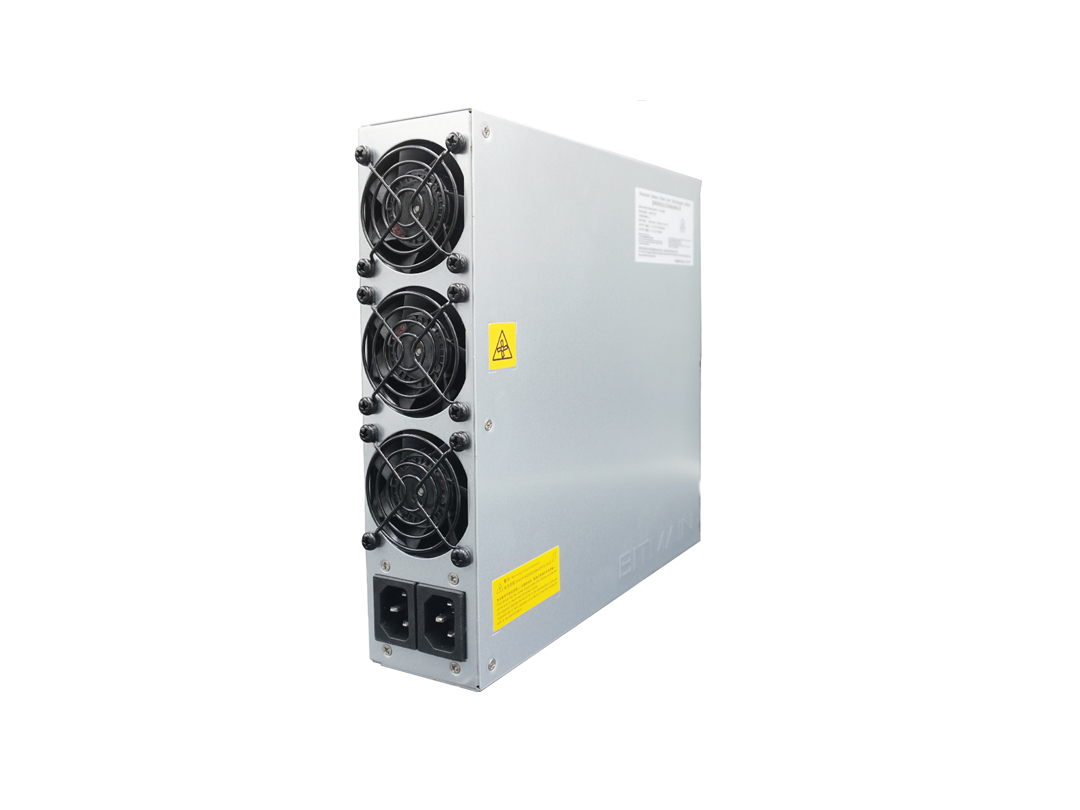

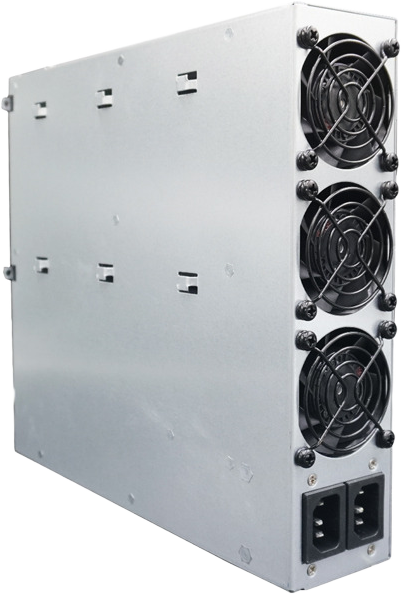

FUTURES APW12_12V-15V EMC （b Version）
| Function |
S19 Pro/T19/S19i/E9/E9 Pro/D7/Z15 Pro
SHA256
Air-cooling Miner
|
| Specifications |
|
| Price |
178 $/T
178 $/Unit
|
| Shipping Date |
Shipping in 15 working days after fully paid
|
| Payment Method |
S19 Pro
T19
S19i
E9
E9 Pro
D7
Z15 Pro
|
Specifications
| Product Glance | |
|---|---|
| Out1 | |
| DC Voltage | 12V-15V |
| Rated Current(220V input) | 208A (when 15V can upto 233A~240A) |
| Short Circuit Protection | >10mS |
| Detailed Characteristics | |
|---|---|
| Out2 | |
| DC Voltage | 12.3V |
| Rated Current(220 V input) | 15A |
| Voltage Accuracy | 12.2V---12.4V |
| Short Circuit Protection | >10mS |
| Input | |
| Voltage Range | 200-240V AC |
| Frequency Range | 47-63Hz |
| Power Factor | >0.99(full load) |
| Protection | |
| Low-voltage Input | 80-89V AC |
| Output Short Circuit | Yes |
| Overheat Protection | Yes |
| Over-current Output | 291A-350A （protection value varies under different voltage） |
| Environment | |
| Operating Temperature | -20-45℃ |
| Operating Humidity | 20%-90%RH（non--condensing） |
| Altitude | < 2000m |
| Structure | |
| Dimensions | 254.6mm*251.6mm*63mm |
| Net Weight | 3.6kg |
| Cooling System | Forced‐air cooling |
| Noise | 45dBA |
Purchasing Guidelines
NOTES
1. One account can purchase a maximum of 500 units.
2. The shipping costs, cutsoms charges, and taxes(if any) are not included in the retail price shown above.
3. After an order has been submitted, a request to cancel the order, refund any part of the ordered amount or change the ordered item(s) to different item(s) or different batch(es) will not be entertained by BITMAIN.
4. The pictures shown are for reference only; the final shipment version shall prevail.
SHIPPING DETAILS
1. The products are made in China. If shipping to the U.S., customers will need to pay tariff.
2. Shipments will be scheduled on a first-paid-first-ship basis for orders on which BITMAIN has received full payment.
3. You are responsible for any customs delays or returned shipments due to a lack of proper documentation. It's highly recommended to be aware of local customs clearance policies and to prepare all customs documentation ahead of time to avoid any customs clearance delays or unexpected costs.
Warranty
CLICK for >> Parts & Materials Ordering Notes and Warranty Information
Please read BITMAIN’s Terms & Conditions for a complete list of conditions and terms that apply to all orders placed on bitmain.com.
