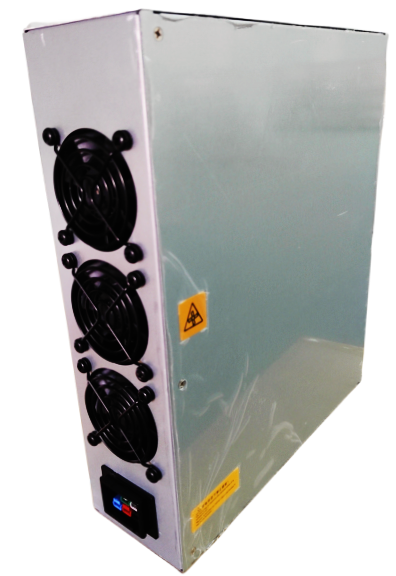

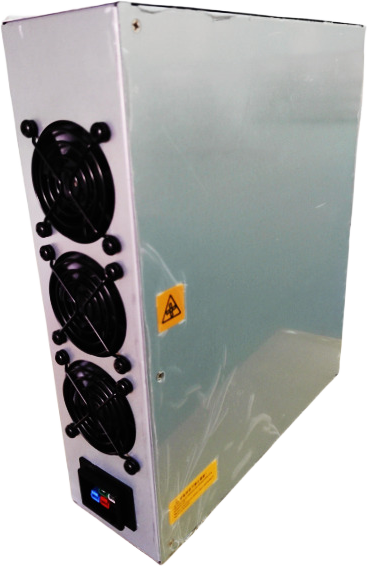

FUTURES APW11A1216-1a,12V-16V,V1.1,EMC
| Function |
T21
Air-cooling Miner
|
| Specifications |
|
| Price |
357 $/T
357 $/Unit
|
| Shipping Date |
Shipping in 30 working days after fully paid
|
| Payment Method |
T21
|
Specifications
| OUT1 | DC Voltage 12V-16V |
| Rated current (three-phase 380V input) | Rated current (three-phase 380V input) |
| Power-off retention time | >10mS |
| OUT2 | DC Voltage 12.3V |
| Rated current (three-phase 380V input) | 21A |
| Voltage Accuracy | 12.2V---12.4V |
| Power-off retention time | >10mS |
| Input | Voltage Range 380-415V AC |
| Frequency Range | 50-60Hz |
| Power Factor | >0.99(full load) |
| Protection | Input undervoltage protection value 333V AC |
| Output Short Circuit | Yes |
| Over-temperature protection | Yes |
| Output overcurrent protection value | 408A-453A |
| （protection value varies under different voltage） Environment | Operating Temperature -20-45℃ |
| Operating Humidity | 20%-90%RH（non-condensing） |
| Altitude | < 2000m |
| Structure | Dimensions 290mm*250mm*80mm |
| Net Weight | 6.4Kg |
| Cooling method | Forced air cooling |
| Noise | 55dB |
Purchasing Guidelines
NOTES
1. One account can purchase a maximum of 500 units.
2. The shipping costs, cutsoms charges, and taxes(if any) are not included in the retail price shown above.
3. After an order has been submitted, a request to cancel the order, refund any part of the ordered amount or change the ordered item(s) to different item(s) or different batch(es) will not be entertained by BITMAIN.
4. The pictures shown are for reference only; the final shipment version shall prevail.
SHIPPING DETAILS
1. The products are made in China. If shipping to the U.S., customers will need to pay tariff.
2. Shipments will be scheduled on a first-paid-first-ship basis for orders on which BITMAIN has received full payment.
3. You are responsible for any customs delays or returned shipments due to a lack of proper documentation. It's highly recommended to be aware of local customs clearance policies and to prepare all customs documentation ahead of time to avoid any customs clearance delays or unexpected costs.
Warranty
CLICK for >> Parts & Materials Ordering Notes and Warranty Information
Please read BITMAIN’s Terms & Conditions for a complete list of conditions and terms that apply to all orders placed on bitmain.com.
