Attention
| Points For Attention
| 1 | The ACS must be placed on flat ground with a levelness requirement of <1°. The foundation load-bearing capacity must be no less than 70t (operating weight approx. 60t with full liquid). |
| 2 | A crane of 25t or above is required for unloading and positioning the ACS. Lifting must be performed with an empty water tank; lifting with full liquid is prohibited. |
| 3 | Only the four lower lifting points may be used (as shown in the lifting diagram in the product manual). The upper lifting points must not be used. Lifting personnel and equipment must hold corresponding qualifications. |
| 4 | Working wind speed during lifting must not exceed 10.8 m/s (below Beaufort scale 6). No lifting is permitted during rain, snow, fog, or other severe weather. |
| 5 | Additional items such as stairs, transformers, cables, bridge racks, and cable distribution boxes are not included in the ACS delivery. If needed, consult BITMAIN for design recommendations. |
| 6 | The customer must confirm the container door direction and external pipeline interface positions before installation. Ensure at least 5m of air intake and exhaust space around the ACS. |
| 7 | Altitude: ≤2000m. If the altitude exceeds 1000m, transformers and switches should be derated, and the total power of the ACS should be reduced by 1% for every 100m increase in altitude. |
| 8 |
Operating ambient temperature: -20℃ to 55℃. Operating humidity: 10%RH to 90%RH, non-condensing. |
| 9 | When the ambient temperature drops below freezing, ethylene glycol antifreeze must be used as the cold storage medium. Confirm that the antifreeze concentration meets the local minimum ambient temperature requirements. |
| 10 | Use pure water or deionized water as the cold storage medium. Do not add unconfirmed corrosion inhibitors or biocides. Customers must not enter or modify the water tank internally. |
| 11 | Before entering the water tank for maintenance, ventilation must be performed to ensure the oxygen level inside the tank meets the standard. Internal inspection and cleaning are permitted only by after-sales or authorized personnel. |
| 12 | The suitable ambient temperature for the ACS does not represent the suitable ambient temperature for the miners. Refer to the miner specifications for the operating environment requirements. |
Product Details
Specifications
| Product overview | Value |
|---|---|
| Model | ANTCOLDSTORAGE |
| Product form | 40ft HQ container ×1 |
| Dimensions (L*W*H), mm | 12,192*2,438*2,896 |
| Tank volume, m³ | 48 |
| Cold storage capacity, GJ | 8 |
| Typical cooling supply duration, h(1-1) | 6 |
| Cold storage temperature range, ℃ | 5~45 |
| Cold storage medium | Pure water / deionized water |
| EER | 2.5 |
| Maximum supported ambient temperature, ℃ | 55 |
| Input voltage and frequency | 380V/50Hz, 3P/N/PE;480V/60Hz, 3P/N/PE |
| Operating ambient temperature, ℃ | -20~55 |
| Storage ambient temperature, ℃ | -20~70 |
| Operating ambient humidity, RH | 10%~90%, non-condensing |
| Altitude, m | ≤2000 |
| Noise level, dBA@15m | 70 |
| Compatible containers | ANTSPACE HW7/HD5/HK3 |
| Certification standards | CE/UL |
| Detailed Specifications | Value |
|---|---|
| Shipping weight, t | 11 (empty water tank) |
| Operating weight, t | 60 (full liquid) |
| Rated cooling capacity, kW(2-1) | 100 |
| Rated power, kW(2-2) | 40 |
| Maximum input power, kW(2-3) | 80 |
| Maximum input current, A(2-3) | 180 |
| Main circuit breaker specification, A | 250 |
| Input cable specification, mm²(2-4) | 95 |
| Corrosion protection | C3 |
| Protection level | IP54 |
Note:
(1-1)Typical cooling supply duration of 6h at ambient temperature 45℃→50℃→45℃.
(2-1)At ambient temperature 55℃, water tank temperature 20℃.
(2-2)At ambient temperature 55℃, water tank temperature 20℃, external circulation pump not working.
(2-3)At ambient temperature 55℃, water tank temperature 45℃, external circulation pump working.
(2-4)Subject to project design and local codes.
Purchasing Guidelines
1. The ACS is recommended to be used with ANTSPACE HW7, HD5 and HK3 hydro-cooling containers, compatible with the ANTMINER S19 Hyd. series, S21 Hyd. series, and S23 Hyd. series.

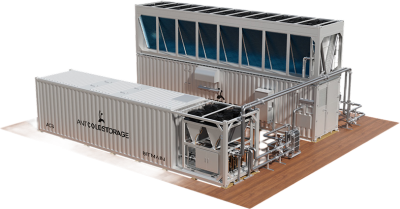

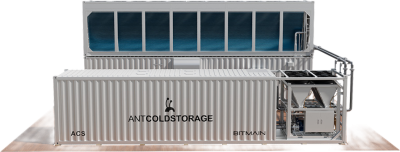

2. The product images show ACS paired with ANTSPACE HW7 for illustration purposes only. The price above only covers the ACS unit; the ANTSPACE container and miners are sold separately. The final shipment version shall prevail.
3. The ACS does not come with coolant, which must be purchased separately by the customer. Use pure water or deionized water as the cold storage medium.
| Shipping Details
1. Shipments will be scheduled on a first-paid-first-ship basis for orders on which BITMAIN has received full payment.
2. The ACS shipping dry weight is approximately 11t (empty water tank). The customer is responsible for providing a crane (≥25t) and qualified lifting personnel for unloading.
3. You are responsible for any customs delays or returned shipments due to a lack of proper documentation. It is highly recommended to be aware of local customs clearance policies and prepare all customs documentation ahead of time to avoid delays or unexpected costs.
Warranty
1. A 365-day warranty period is provided starting from the shipping date. BITMAIN will cover shipping costs when shipping a replacement unit within the warranty period.
2. The warranty only applies to the original purchaser who purchased the machine directly from BITMAIN. Once the product is resold, warranty coverage becomes the responsibility of the re-seller.
3. If the user fails to use the product per the given instructions, specifications, and conditions provided or changes the function settings of the unit without BITMAIN's prior consent, BITMAIN will not be liable for any damage arising therefrom.
4. Click here for a complete list of the Terms & Conditions that apply to all orders placed on https://shop.bitmain.com.
