FUTURES AFC04-PDU（20）

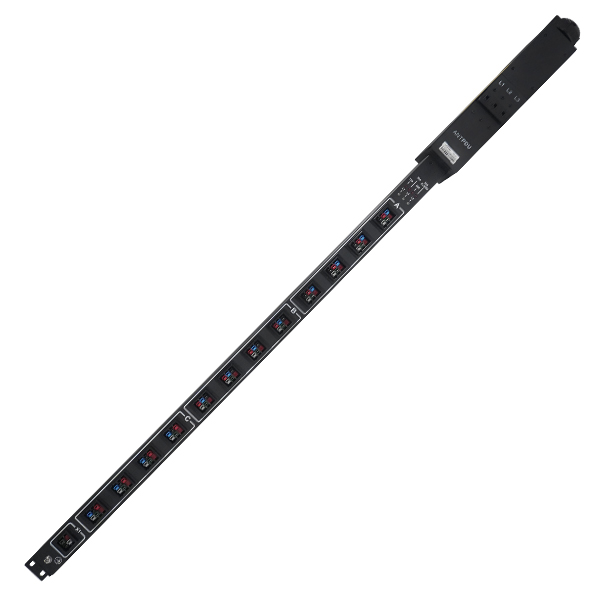

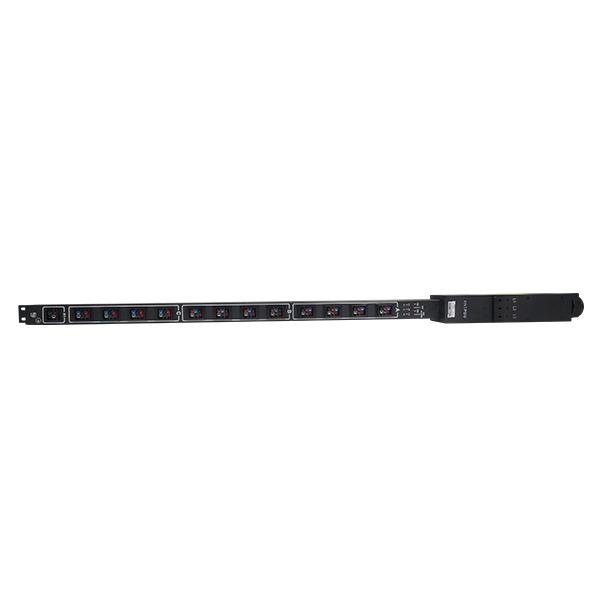

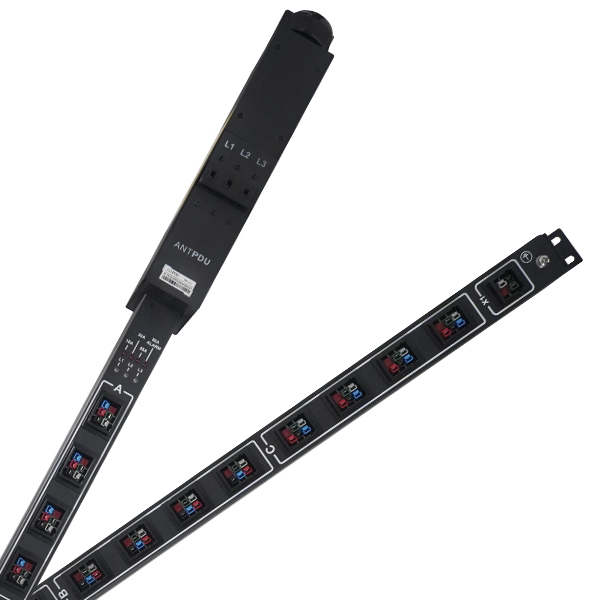

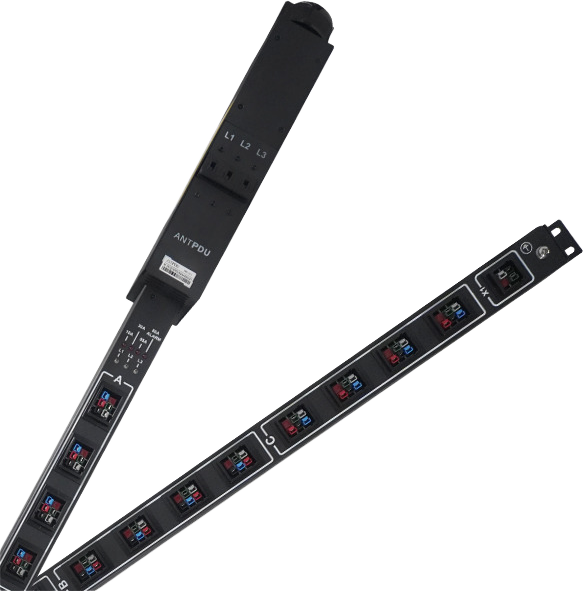

Bitmain AFC04-PDU (20) power distribution unit for reliable operation of multiple Antminers in large farms.
Specifications
| Product Glance | |
|---|---|
| Input parameters | |
| Input voltage | 346-480V AC,3P+N+PE |
| Frequency | 50/60Hz |
| Input current | 100A,3P |
| Detailed Characteristics | |
|---|---|
| Output parameters | |
| Output rating | 83kW |
| Output voltage | 3 Phase 346-480V AC |
| Output voltage | 200-277V AC,Single phase |
| Output bits | 12 Port 6pin+1Port 4pin |
| Protect Grade | IP20 |
| Working environment | |
| Working temperature | -20~40℃ |
| Working humidity | 5%-90%RH（No condensing） |
| Altitude | ≤2000m |
| Storage temperature | -40~70℃ |
| Storage humidity | 5%-95%RH（No condensing） |
