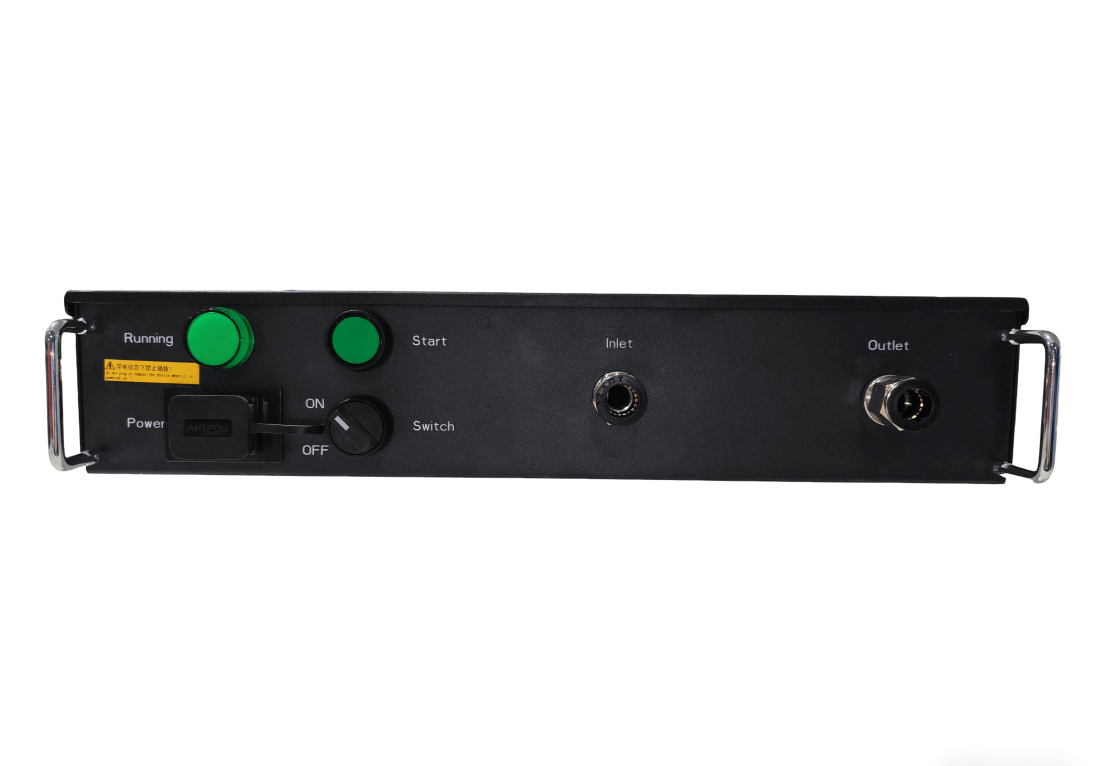

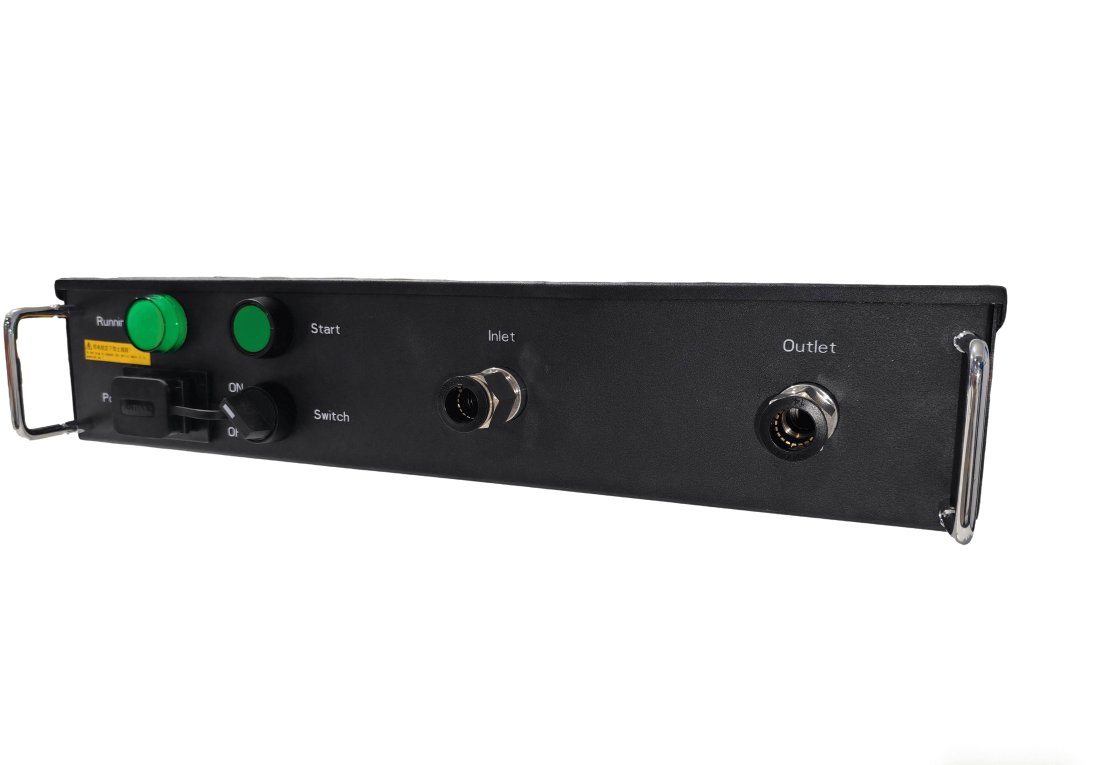

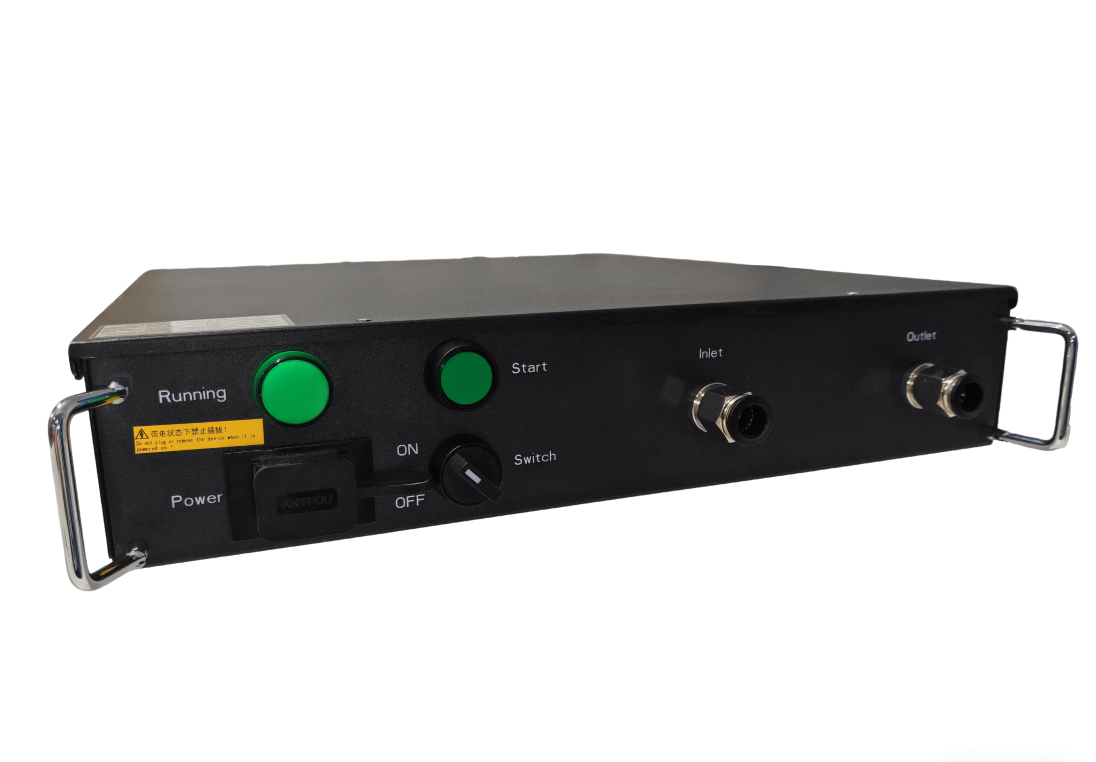

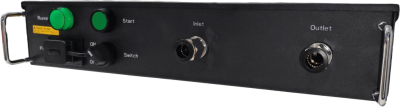

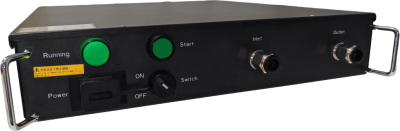

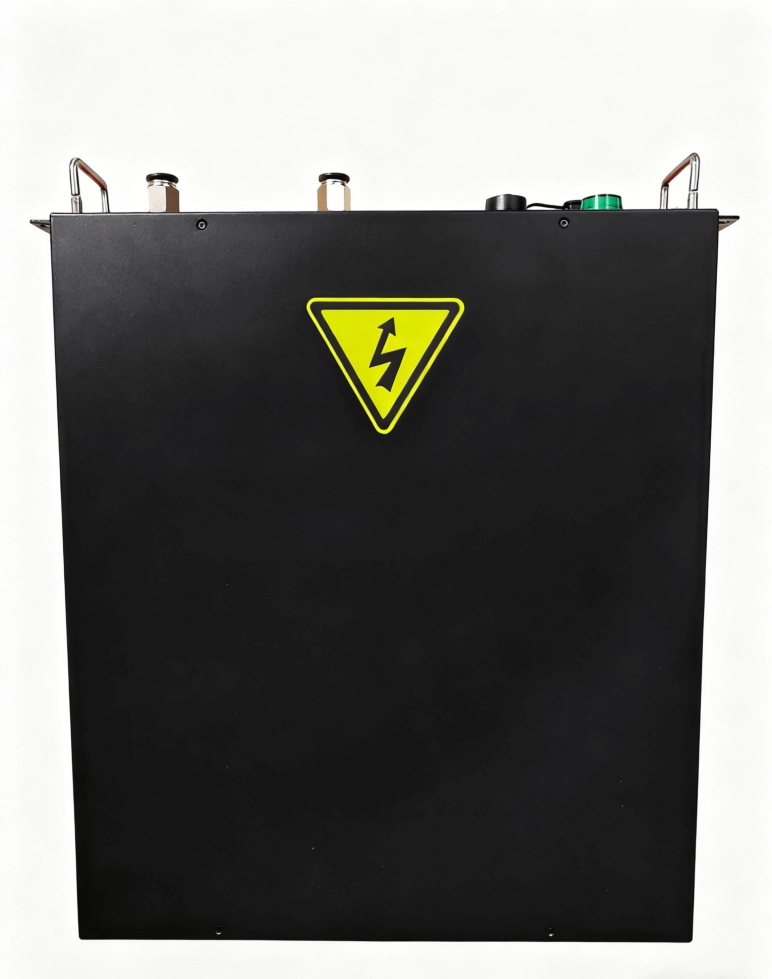

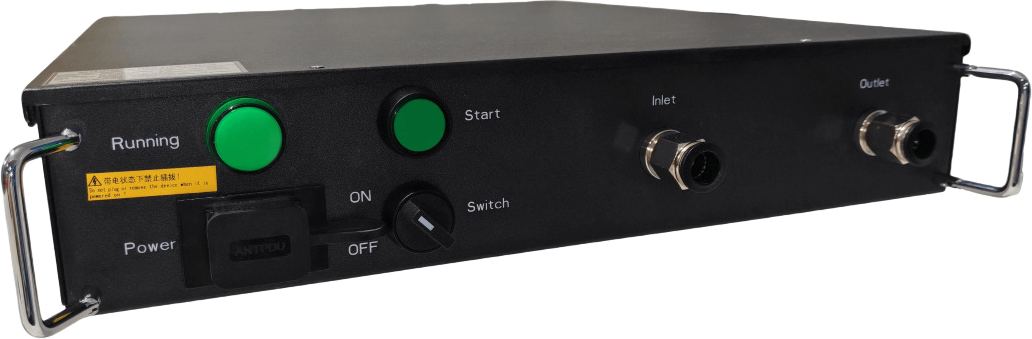

SPOT AFC03-PTC（20）
| Function |
Heats the medium within the hydro cooling system of containers
|
| Specifications |
|
| Price |
1,000 $/T
1,000 $/Unit
|
| Shipping Date |
SPOT
Shipping in 45 working days after fully paid
|
| Payment Method |
Heats the medium within the hydro cooling system of containers
|
Specifications
| Product Glance | Value |
|---|---|
| Model | AFC03-PTC |
| Dimensions, mm | 508*445*87 |
| Input Power | 400V±5%, 50/60Hz, 3P |
| Rated Power, kW | 10 |
| Max Current, A | ≤26 |
| Color | RAL9005 |
| Detailed Characteristics | Value |
|---|---|
| Power Supply Voltage Range, V | 380~415 |
| Frequency Range, Hz | 50-60 |
| Phase | 3 |
| Power Connector | PA45-6 |
| Heating Medium | Antifreeze/Pure Water/Deionized water |
| Diameter of Inlet Pipe, mm | OD14 |
| Protection Overheat Protection | Yes |
| Prevent Dry Heating Protection | Yes |
| Auto.Shutdown Temperature(Inlet), ℃ | |
| Auto.Shutdown Temperature(Outlet), ℃ | 50 |
| Environment Operating Temperature, ℃ | -40-50 |
| Operation humidity, RH | 10~90% |
| Storage Temperature, ℃ | -40-70 |
| Altitude, m | < 2000 |
| Structure Dimensions, mm | 508*445*87 |
| Net Weight, kg | 14 |
| Gross Weight, kg | 17.5 |
| Water flow rate, L/min | ≥16 |
| Head Loss@16L/min, kPa | ≤20 |
Purchasing Guidelines
NOTES
1. The shipping costs, cutsoms charges, and taxes(if any) are not included in the retail price shown above.
2. After an order has been submitted, a request to cancel the order, refund any part of the ordered amount or change the ordered item(s) to different item(s) or different batch(es) will not be entertained by BITMAIN.
3. The pictures shown are for reference only; the final shipment version shall prevail.
SHIPPING DETAILS
1. Shipments will be scheduled on a first-paid-first-ship basis for orders on which BITMAIN has received full payment.
2. You are responsible for any customs delays or returned shipments due to a lack of proper documentation. It's highly recommended to be aware of local customs clearance policies and to prepare all customs documentation ahead of time to avoid any customs clearance delays or unexpected costs.
