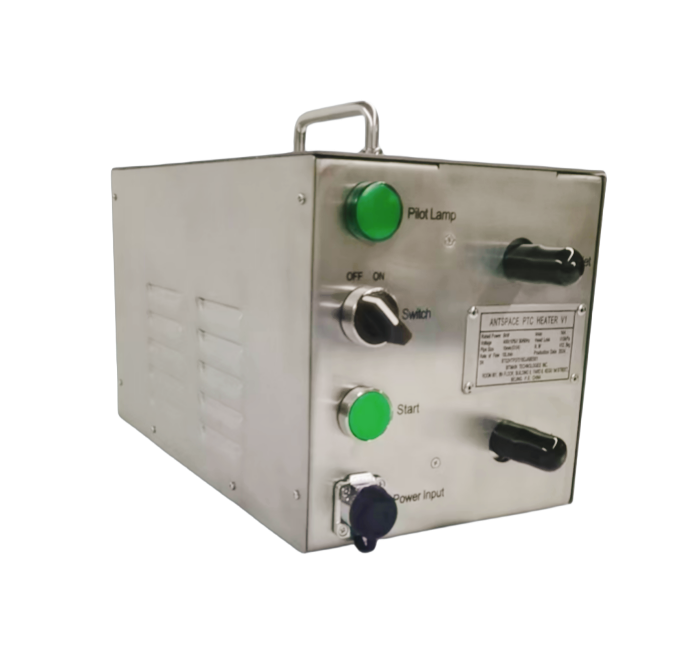

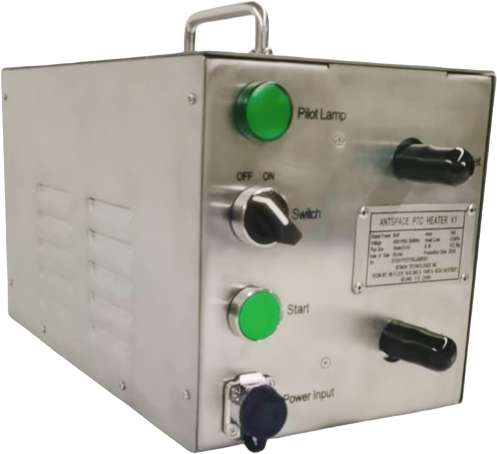

SPOT AFC03-PTC（10）
Bitmain AFC03-PTC(10) PTC heater for HK3/V2/V3/V5/V6 hydro containers. Maintains optimal coolant temperature in Antminer liquid-cooled mining systems.
Specifications
| Input 1 | Rated Current(400V input) 8.7A |
| Rated Power(380Vinput) | 6000W |
| Auto.Shutdown Temperature(Inlet) | 25℃ |
| Auto.Shutdown Temperature(Outlet) | 50℃ |
| Input 2 | Voltage Range 380-420V AC |
| Frequency Range | 50-60Hz |
| Phase | 3P |
| Protection | Overheat Protection Yes |
| Prevent Dry Heating Protection | Yes |
| Environment | Operating Temperature -40-50℃ |
| Storage Temperature | -40-70℃ |
| Altitude | < 2000m |
| Structure | Dimensions 339mm*188mm*200mm |
| Net Weight | 11kg |
| Water flow rate | 10L/min |
| Head Loss | ≤10kPa |
Purchasing Guidelines
NOTES
1. One account can purchase a maximum of 500 units.
2. The shipping costs, cutsoms charges, and taxes(if any) are not included in the retail price shown above.
3. After an order has been submitted, a request to cancel the order, refund any part of the ordered amount or change the ordered item(s) to different item(s) or different batch(es) will not be entertained by BITMAIN.
4. The pictures shown are for reference only; the final shipment version shall prevail.
SHIPPING DETAILS
1.The products are made in China. If shipping to the U.S., customers will need to pay an extra 25% tariff.
2. Shipments will be scheduled on a first-paid-first-ship basis for orders on which BITMAIN has received full payment.
3. You are responsible for any customs delays or returned shipments due to a lack of proper documentation. It's highly recommended to be aware of local customs clearance policies and to prepare all customs documentation ahead of time to avoid any customs clearance delays or unexpected costs.
Warranty
CLICK for >> Parts & Materials Ordering Notes and Warranty Information
Please read BITMAIN’s Terms & Conditions for a complete list of conditions and terms that apply to all orders placed on bitmain.com.
