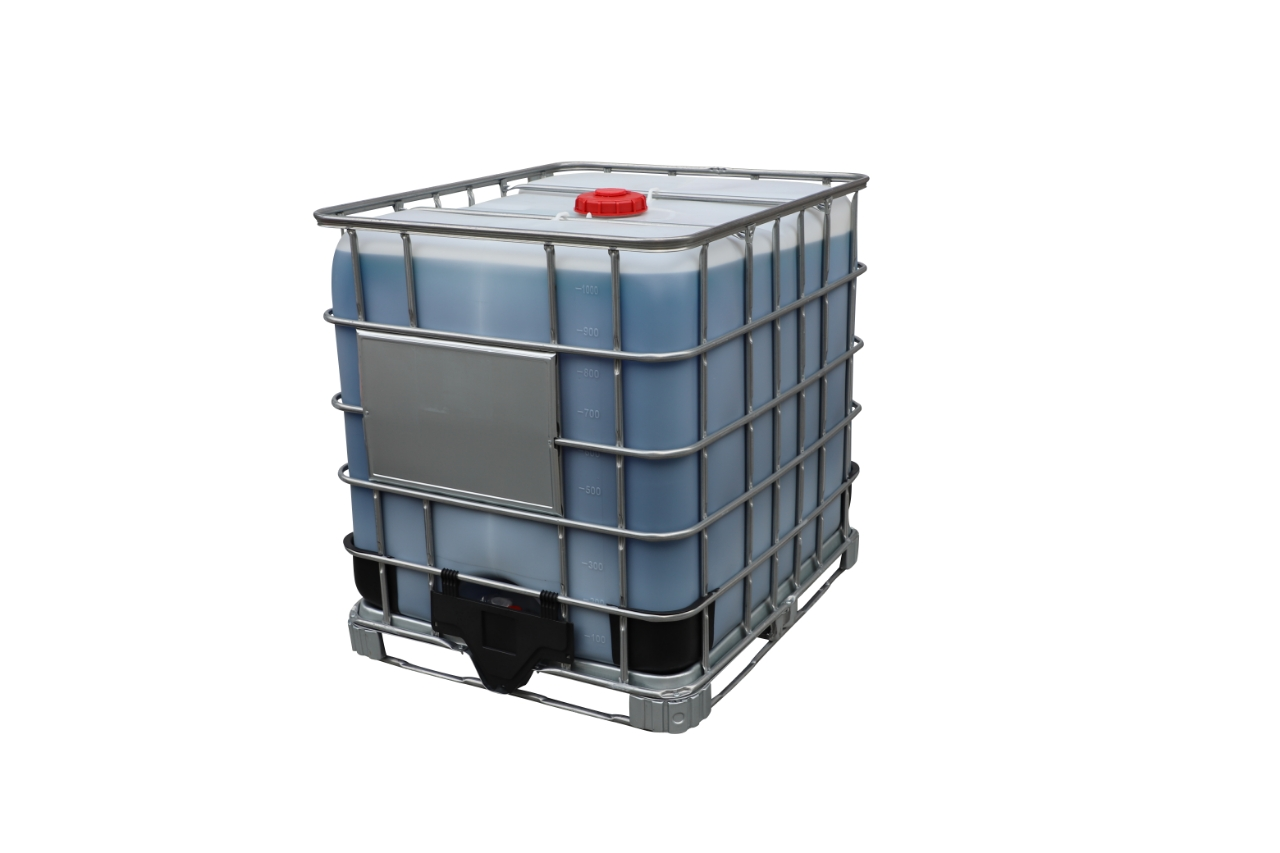

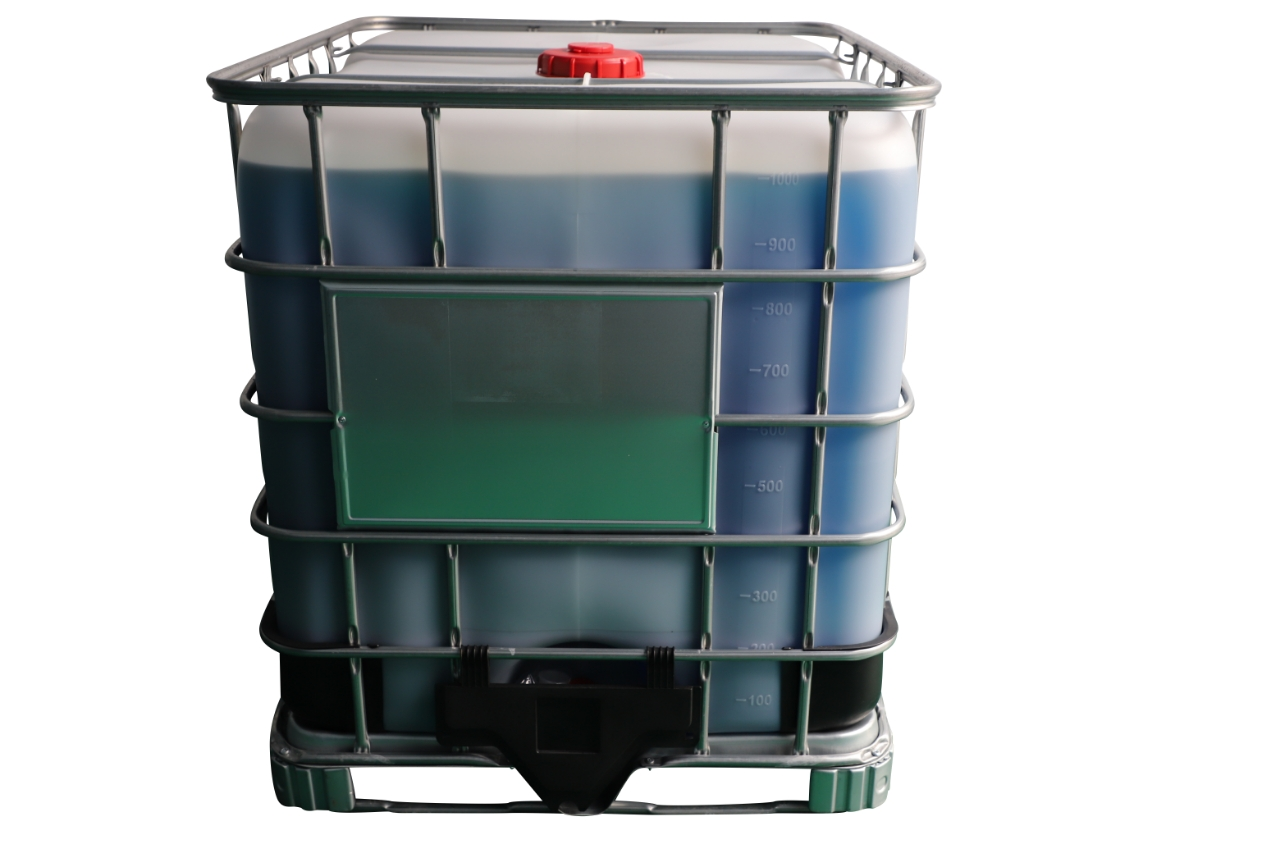

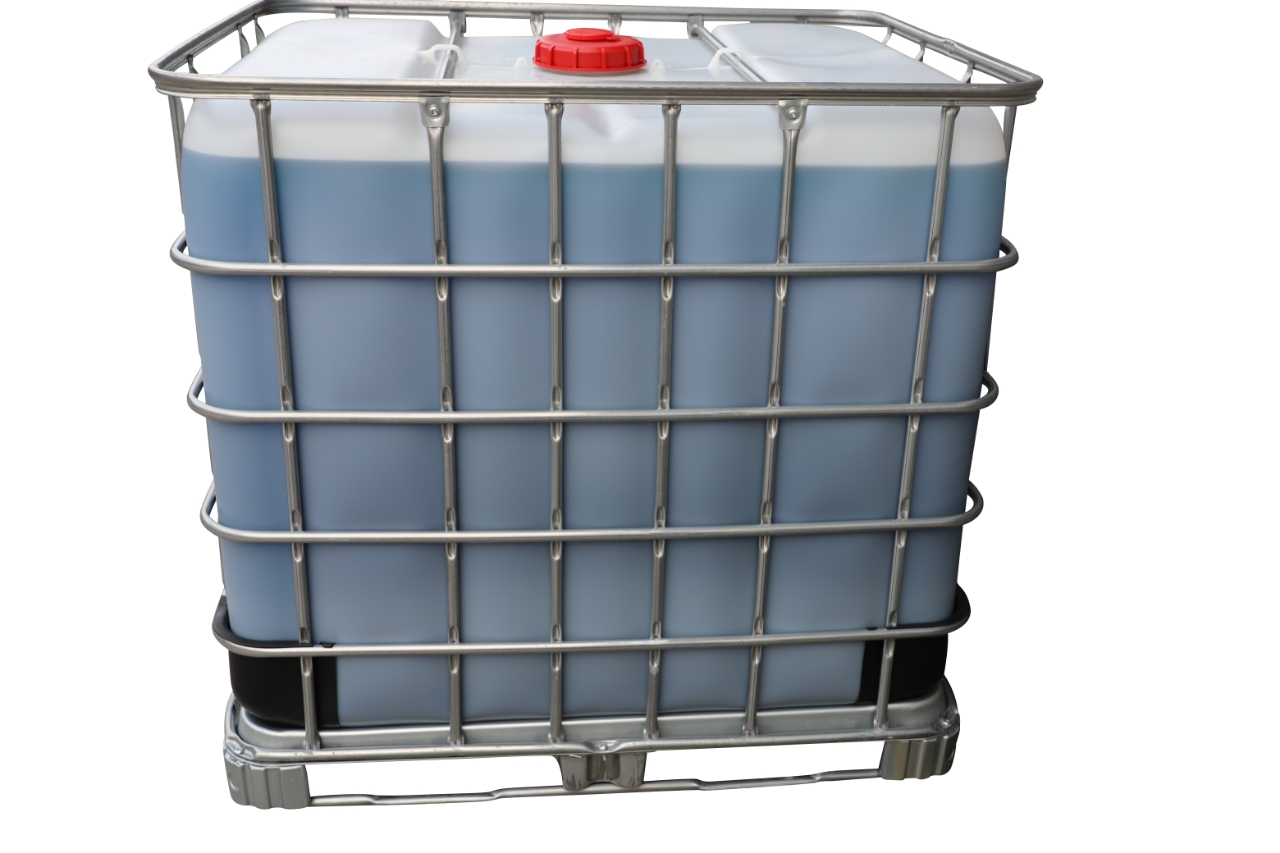

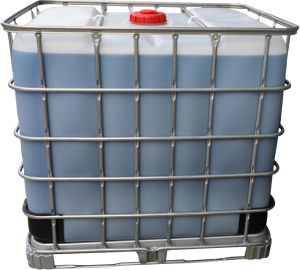

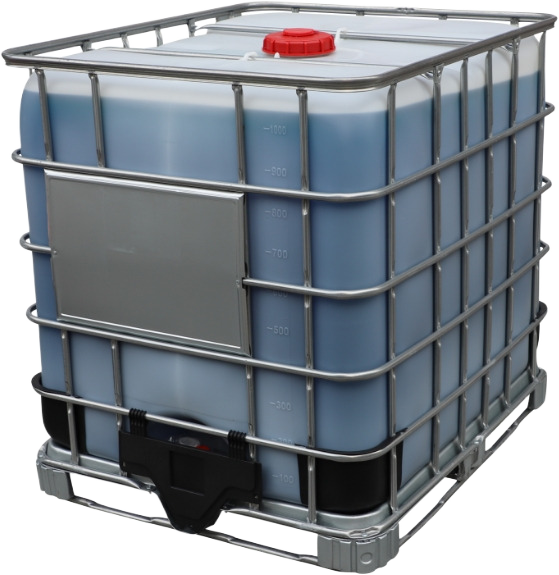

SPOT AFC02-AZ（10）
Bitmain AFC02-AZ(10) antifreeze coolant – 53% concentration, -40°C freezing point. For all Antminer hydro-cooled systems and ANTSPACE containers.
Specifications
| Product Overview | Value |
|---|---|
| Model | AFC02-AZ |
| Version | V1.0 |
| Dimensions (l*w*h), mm | 1200*1000*1160 |
| Shipping Weight, T | 1.14 |
| Detailed Characteristics | Value |
|---|---|
| Color | Blue/Red clear liquid |
| Odor | Asexual odor |
| PH | 8.0~9.0 |
| Conductivity, µS/cm | 2400-4000 |
| Reserve alkalinity, mL | >2.5 |
| Freezing point, ℃ | -40 |
| Glycol volume concentration | 53% |
| Density, kg/L | 1.070-1.078 |
| Thermal conductivity@20℃, W/m.K | 0.352-0.406 |
| Specific heat capacity@20℃, kJ/kg.K | 3.190~3.229 |
| Relationship between antifreeze glycol concentration and freezing point Glycol volume concentration, % | Freezing point, ˚C |
| 5 | -1.6 |
| 10 | -3.7 |
| 15 | -6.1 |
| 20 | -8.9 |
| 25 | -12 |
| 30 | -15.4 |
| 35 | -20.3 |
| 40 | -25.3 |
| 45 | -31.1 |
| 50 | -36.4 |
| 55 | -44.2 |
| 60 | -54 |
Purchasing Guidelines
1. The ANTSPACE AZ needs to be replaced every three years.
2. The pictures shown are for reference only; the final shipment version shall prevail.
| Shipping Details
1. Shipments will be scheduled on a first-paid-first-ship basis for orders on which BITMAIN has received full payment.
2. You are responsible for any customs delays or returned shipments due to a lack of proper documentation. It's highly recommended to be aware of local customs clearance policies and prepare all customs documentation ahead of time to avoid delays or unexpected costs.
3. Click here to download Certificates of Conformity and find additional information on customs clearance for BITMAIN products.
Warranty
1. A 365-day warranty period is provided starting from the shipping date. BITMAIN will cover shipping costs when shipping a replacement unit within the warranty period.
2. The warranty only applies to the original purchaser who purchased the machine directly from BITMAIN. Once the miner is resold, warranty coverage becomes the responsibility of the re-seller.
3. If the user fails to use the product per the given instructions, specifications, and conditions provided or changes the function settings of the unit without BITMAIN's prior consent, BITMAIN will not be liable for any damage arising therefrom.
4. Click here for a complete list of the Terms & Conditions that apply to all orders placed on https://shop.bitmain.com.
